FritsJurgens - Adjustable Pivot Hinge System 1

Movement

The System One Pivot Door Hinge Can Be Opened To Both The Left And The Right, Turns Through 360˚ And Has No Hold Positions Or Closure Function. It Is Possible To Combine System One With Door Frames; In This Case The Door Rotation Is 90˚.

Maximum Bearing Capacity

500kg

Minimum Door Thickness

40 mm

Hold Positions

None

Minimum Dimensions Around The Door For Fitting

Below: 13 mm

Above: Minimum 4 mm, Maximum 10 mm.

Door/Closing Side:: Cap Calculation

Minimum Distance From The Pivot Point To The Side Of The Door

91mm

Maximum Door Dimensions

Unrestricted Up To A Maximum Weight Of 500 Kg (System Selector).

Special Doors

FritsJurgens System One Is Suitable For Fire-Resistant Doors, Soundproof Doors, Doors With Draught-Excluding, Windproof And Waterproof Profiles, And Burglar-Resistant Doors. For More Information Please Contact One Of Our Dealers Or Partners In Your Area.

Floating Floors / Suspended Ceilings

It Is Possible To Fit A Pivot Door If The Floor Plate Or Ceiling Plate Is Connected To The Structural Subfloor Or Ceiling.

Packaging

Delivered As A Complete Set With Top Pivot, Floor Plate, Ceiling Plate And Fitting Accessories.

Components

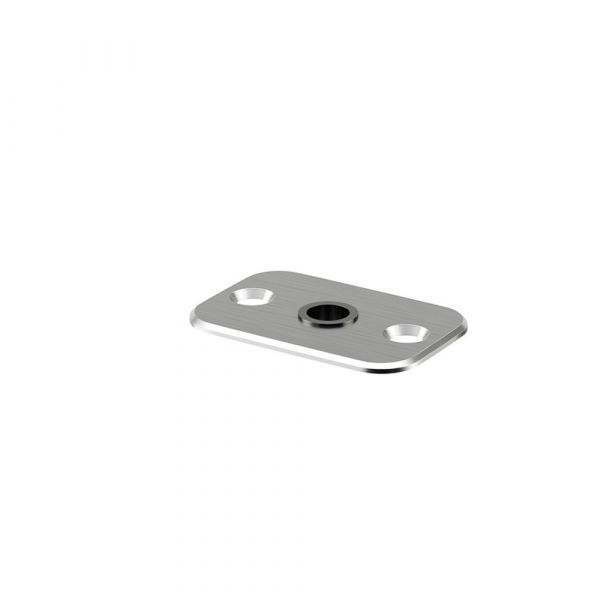

Ceiling Plate

A stainless-steel ceiling plate is fitted in the ceiling. The pin of the top pivot fits seamlessly into the hole in the ceiling plate.

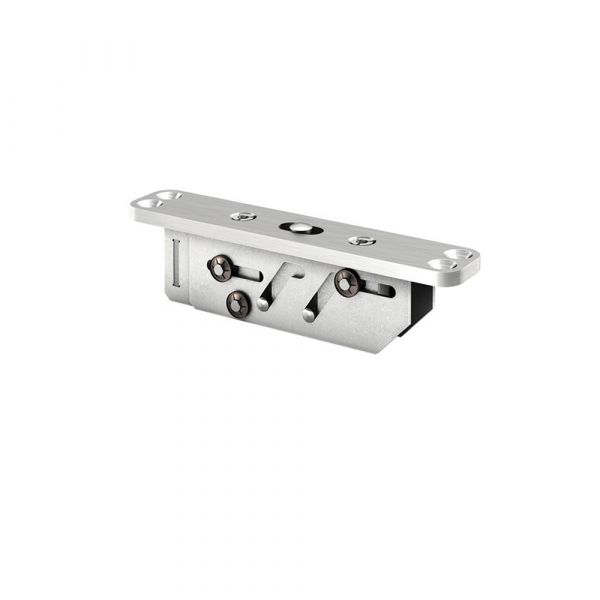

Top Pivot

The top pivot is integrated into the top of the door and uses a so-called pin/hole connection. The pin is fixed to the top pivot and drops into the hole in the ceiling plate when this is turned.

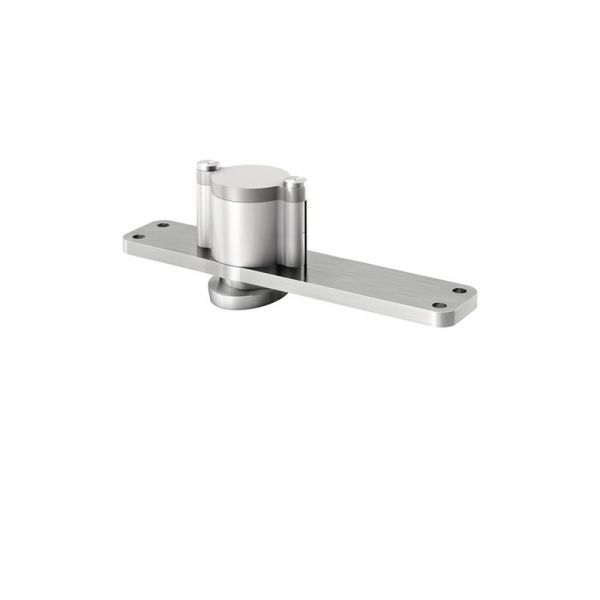

System 3

System 3 pivot hinge is integrated into the lower part of the door. The oval base of the pivot hinge system is inserted into the slot in the floor plate.

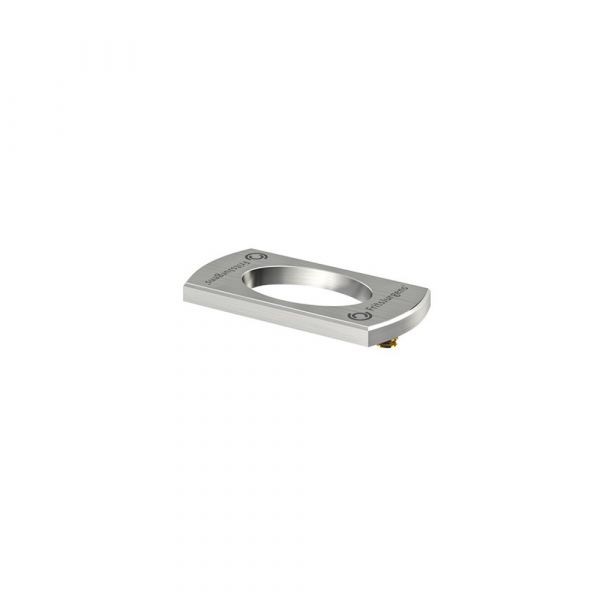

Floor Plate

A stainless-steel floor plate with an oval recess is fitted to the floor. The base of the pivot hinge fits seamlessly into the recess in the floor plate.
