Salice - Silentia 700 Series - Hinge 110 Degree Inset - Full Half - Overlay - Soft Closing - Finishing Nickel Titanium
Brand: Salice
Silentia+ allows a perfect and constant closing of the door in any condition, use and application.
The innovative soft-close technology guarantees excellent performances to the complete range of hinges.
Silentia+ includes numerous technological elements in the required spaces and maintains the aesthetics of the hinges of the first generation.
Features:
Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup.
The decelerating effect is adjusted by using a simple switch.
Dimensions of the Ø 35 mm cup.
Hinges for min. 16 mm thick doors.
13.5 mm deep cup.
110° opening.
Possible drilling distance on the door (K): from 3 to 6 mm.
Compatible with all traditional Series 200 mounting plates and with all
Domi Snap-On mounting plates.
Products Variations:
Item code: Mounting type Finish Arm

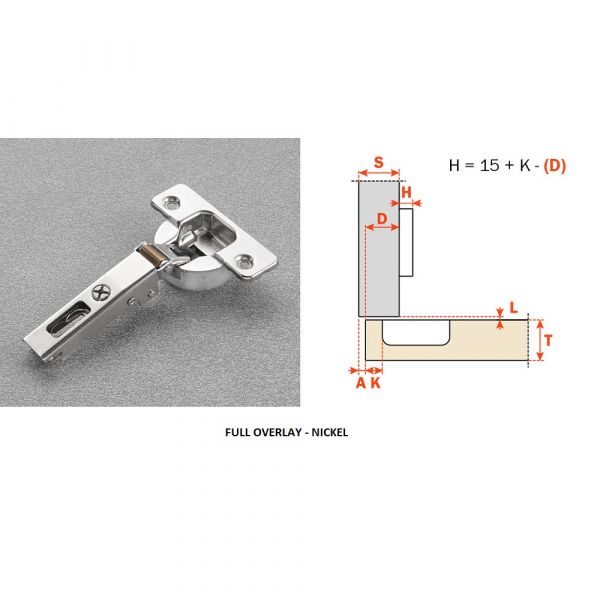

C7A6AE9 Full overlay Nickel 0 Arm
C7A6GE9 Half overlay Nickel 9 Arm

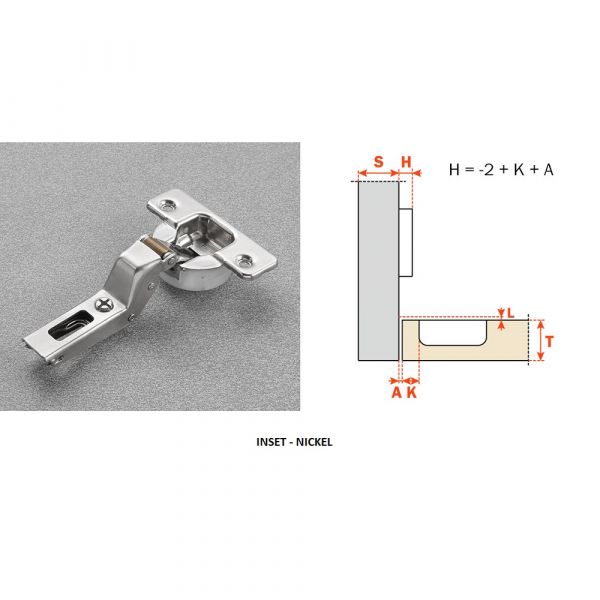

C7A6PE9 Inset Nickel 17 Arm
C7A6AE6 Full overlay Titanium 0 Arm
C7A6GE6 Half overlay Titanium 9 Arm

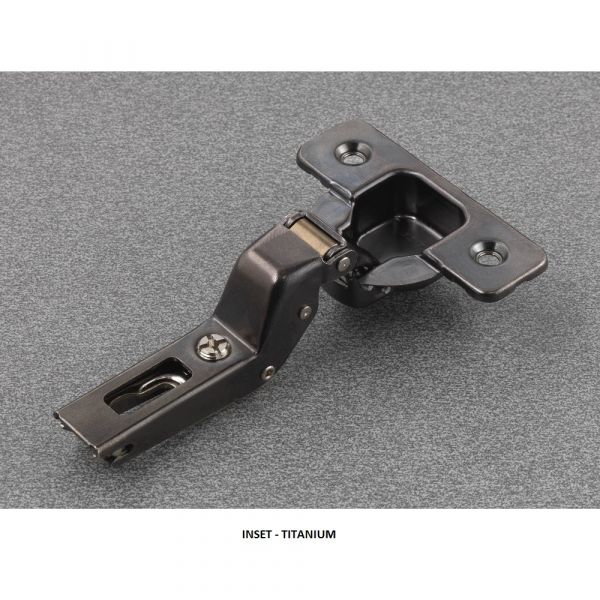

C7A6PE6 Inset Titanium 17 Arm
