Hettich - Veosys Cross Mounting Plate - For Screwing
9289598
Save 25%
+971562015094
Brand: Hettich
For 4 mm ø x 16 mm countersunk screws
Quality classification under EN 15570, Level 2
Corrosion proof, 120h NSS (neutral salt spray test) to DIN EN ISO 9227
Oblong hole height adjustment ± 3 mm
Specification:
Type of installation mounting plates: For screwing on
Mounting plate / Hole line distance LR / Hole spacing LA: Cross mounting plate / LR 37 / LA 32
Type of mounting plate: Cross mounting plate

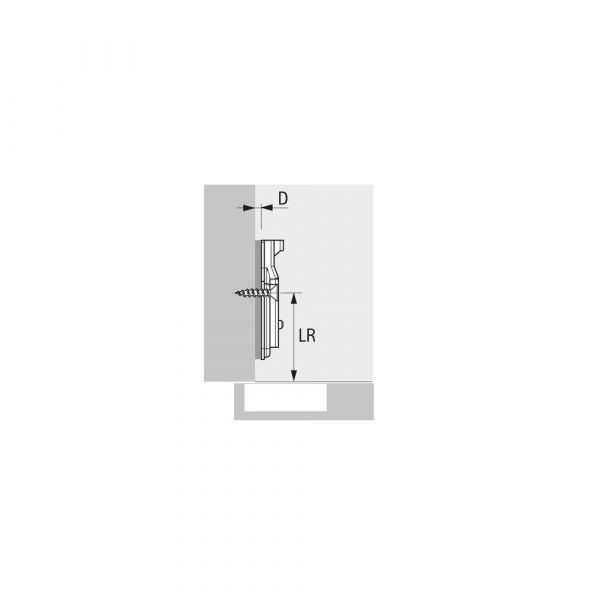

Hole line distance LR: 37 mm
Height adjustment: Oblong hole height adjustment
Hole line: Hole line 37 x 32 mm
Distance: 0 mm
Hole spacing: 32 mm
Material: Stainless steel
Finish: Stainless steel
Door mounting option: Overlay, half overlay, inset
EAN: 4023149257476
Order no.: 9289598
