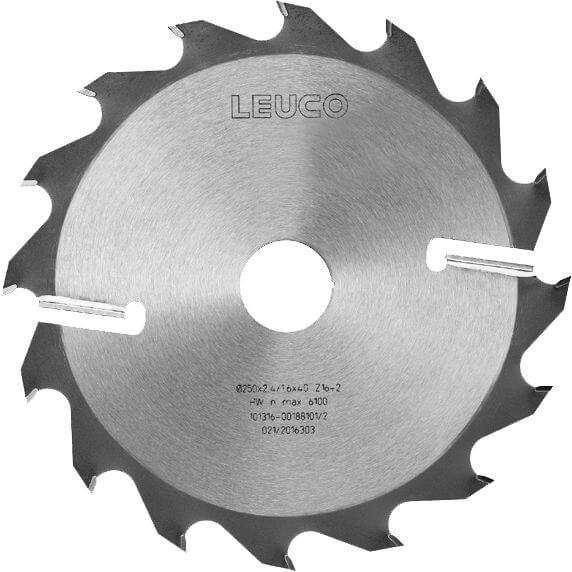

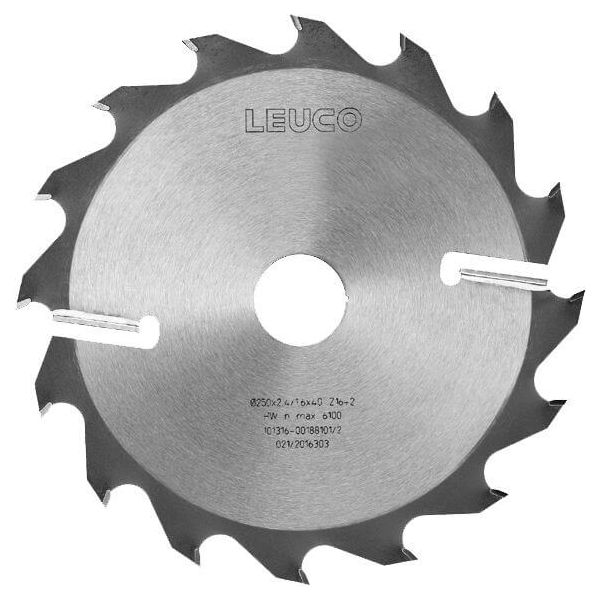

LEUCO - LE1101315189297 - GANG-RIP SAW BLADES HW WITH HW-RAKERS "F"
Product Code: LE1101315189297
Brand: Leuco
Specification:
MACHINE / APPLICATION
molders
gang-rip saws with one or two shafts
for longitudinal cuts in wet and dry soft woods
DESIGN
tooth configuration: flat "F"
cutting material: HW HL Board 20
type A and C with staggered double keyways
ADVANTAGES
tungsten carbide rakers prevent the sides of the wood from making contact with the steel plate
staggering the types (A-C-A etc.) on the shaft creates a cut division that puts less pressure on the machine
Feature Value

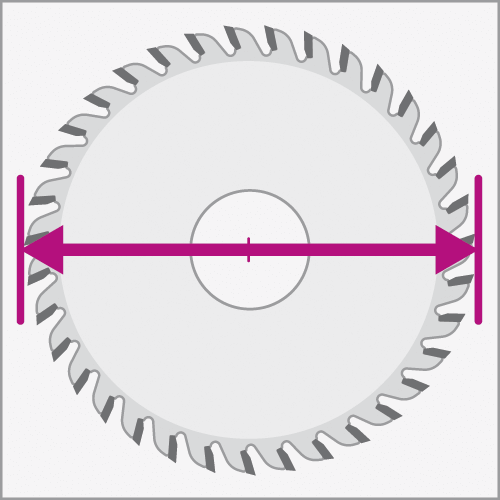

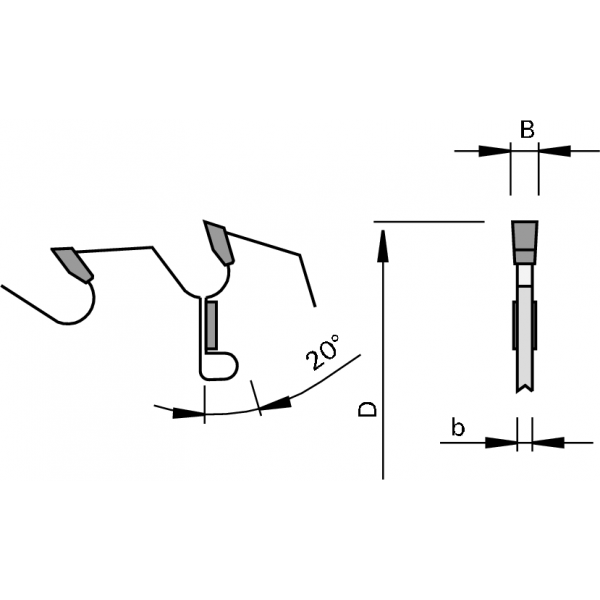

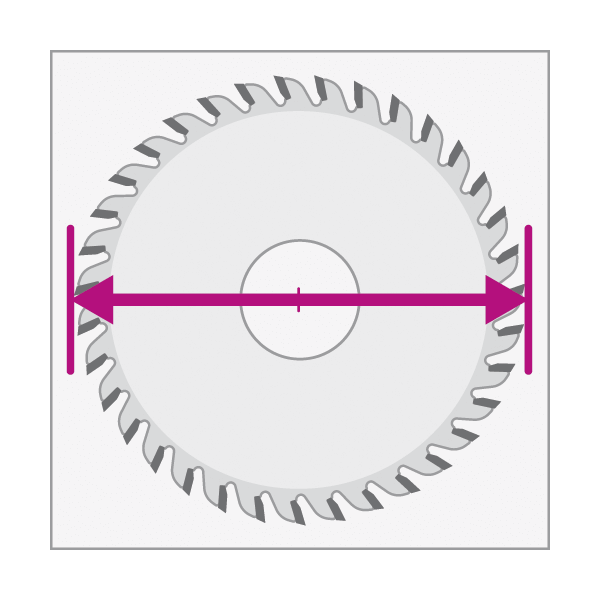

Ø D = Cutting circle diameter 350 [mm]

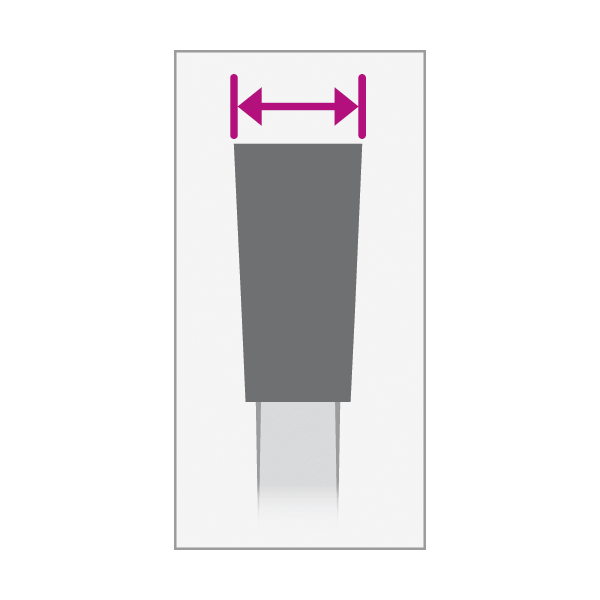

B = Cutting width 3,5 [mm]

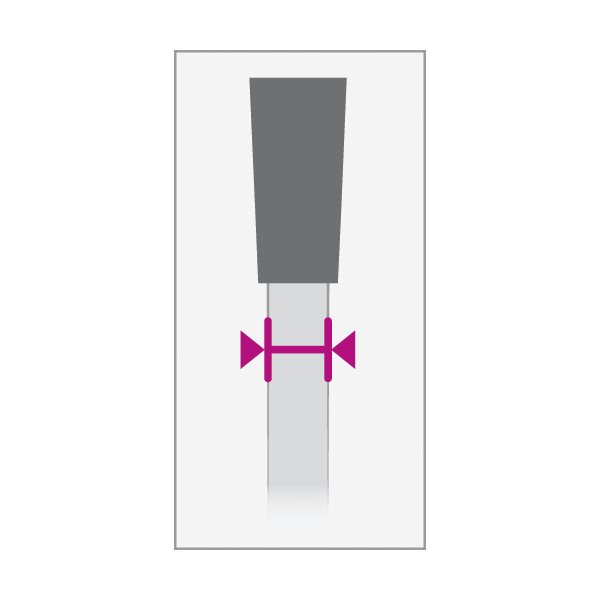

b = Body thickness 2.5 [mm]

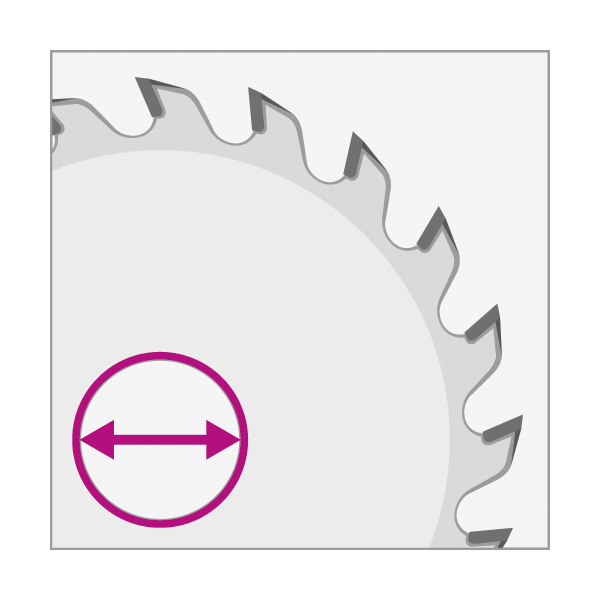

Ø d = Bore diameter 70 [mm]

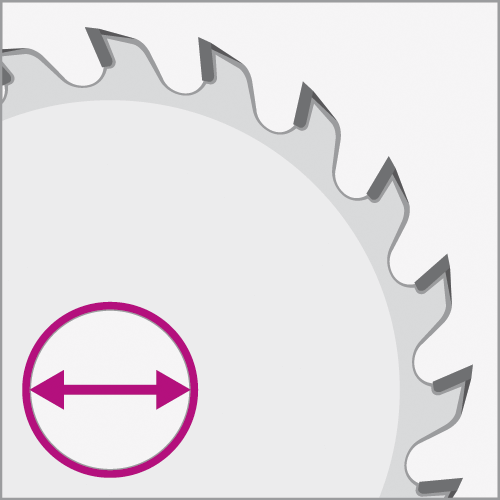

Max. flange Ø = Max. flange diameter 120 [mm]

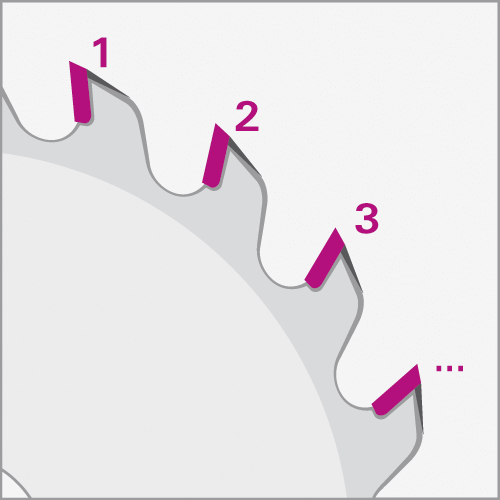

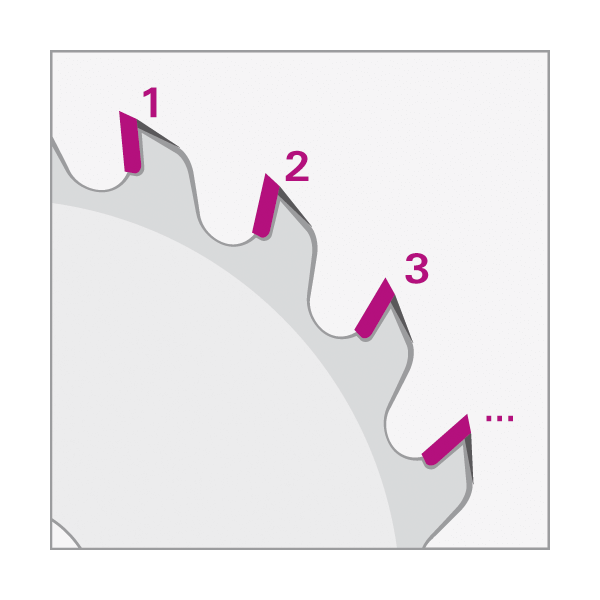

Z = No. of teeth 20

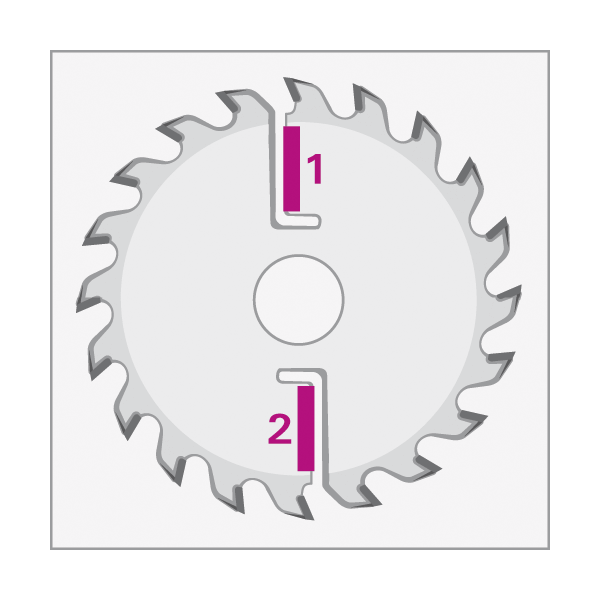

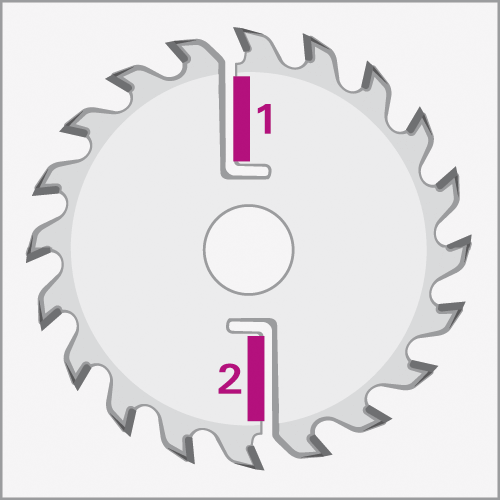

Number of rakers = Number of rakers 2+2 [pc.]

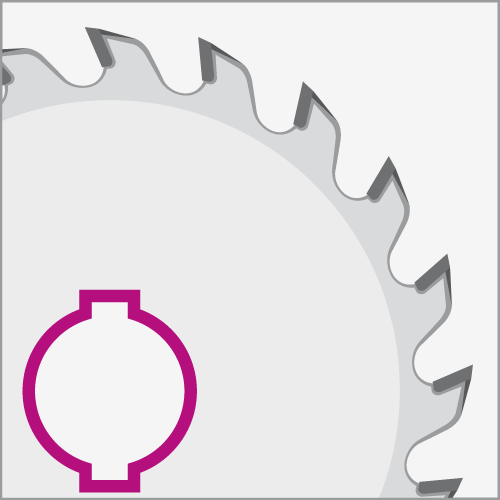

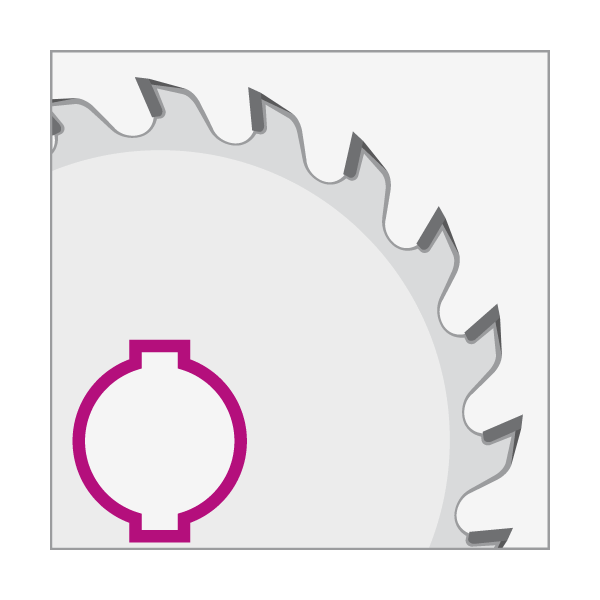

DKN = Double keyway 20x5 [mm]

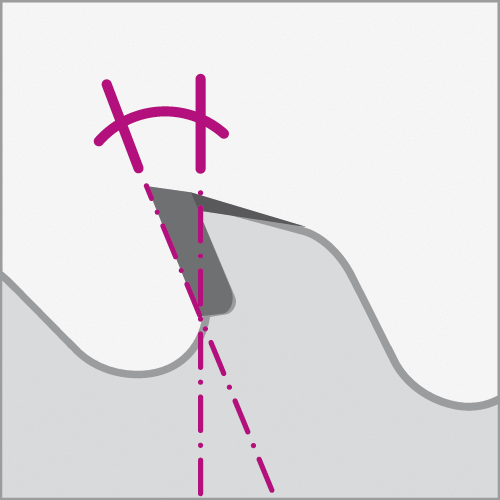

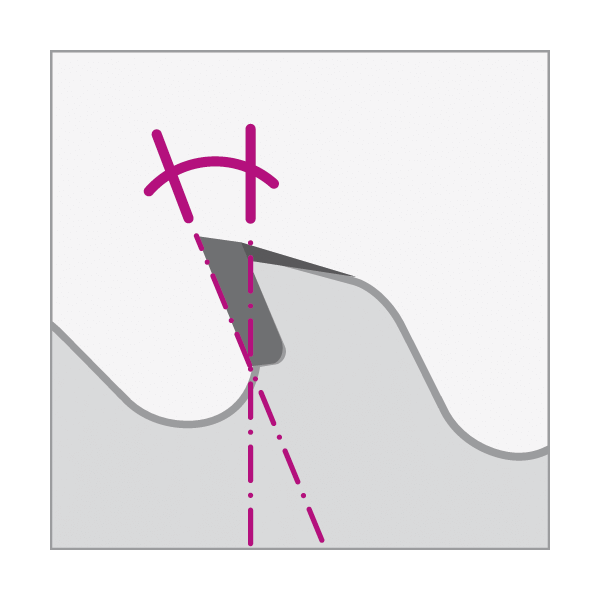

Hook angle = Hook angle 20 [°]
Tooth geometry = Tooth configuration F
LEUCODUR = Cutting material HL Board 20
