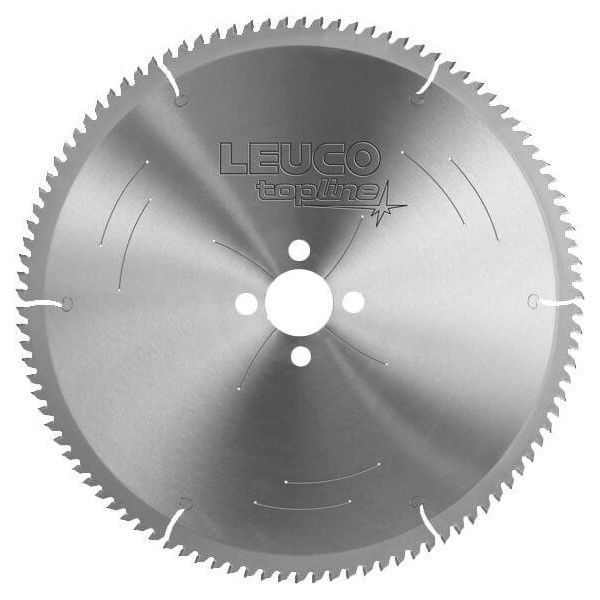

Leuco - NF-Chop Saw Blades HW - Negative Hook Angle "TR-F" Topline - Aluminum Saw 400x3.8x32 Z96

Brand: Leuco

Design

Negative Hook Angle.

Tooth Configuration: Triple Chip / Flat "TR-F".

Cutting Material: HW HL Board 06.

Machine / Application

Chop and Miter Saws.

For Clipping and Miter Cuts in Aluminum and Plastic Profiles.

Advantages

Noise-reduction thanks to laser ornaments.

Product Variation:

LE1108472189849

Features:

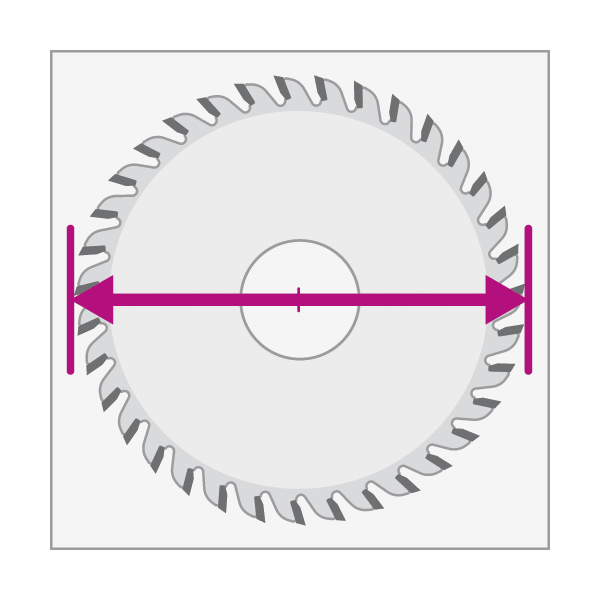

ØD=Cutting Circle Diameter: 250 [mm]

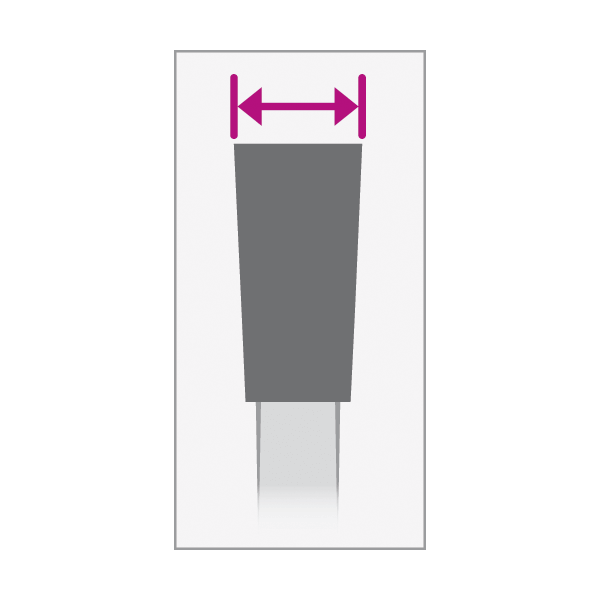

B = Cutting Width: 3,2 [mm]

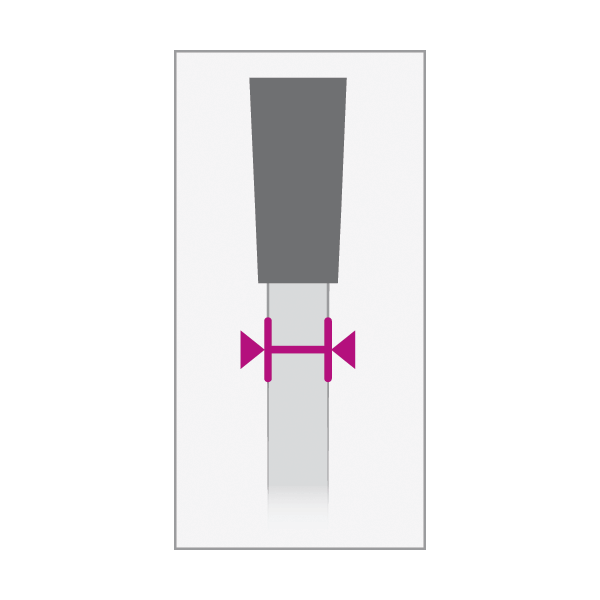

b = Body Thickness: 2.5 [mm]

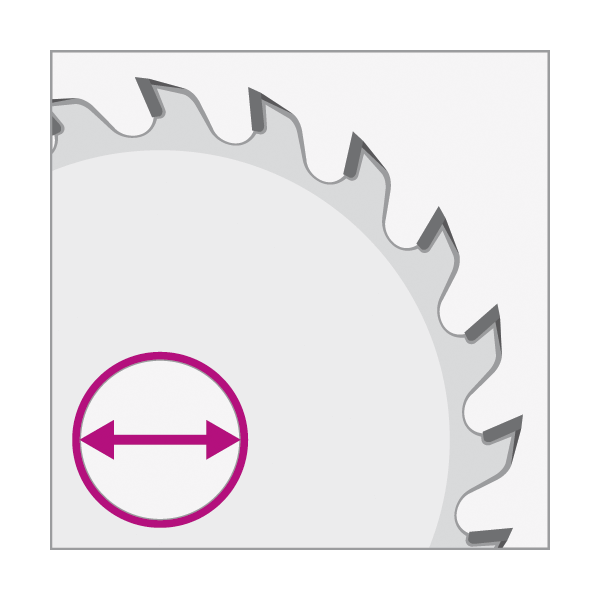

Ø d = Bore Diameter: 32 [mm]

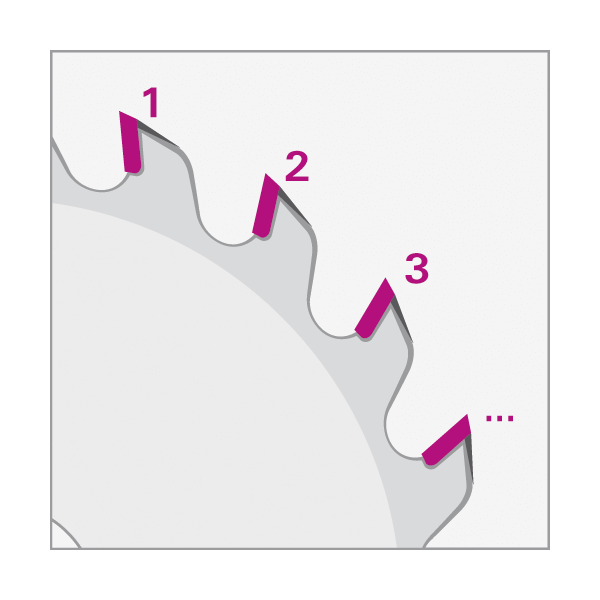

Z = No. of Teeth: 80

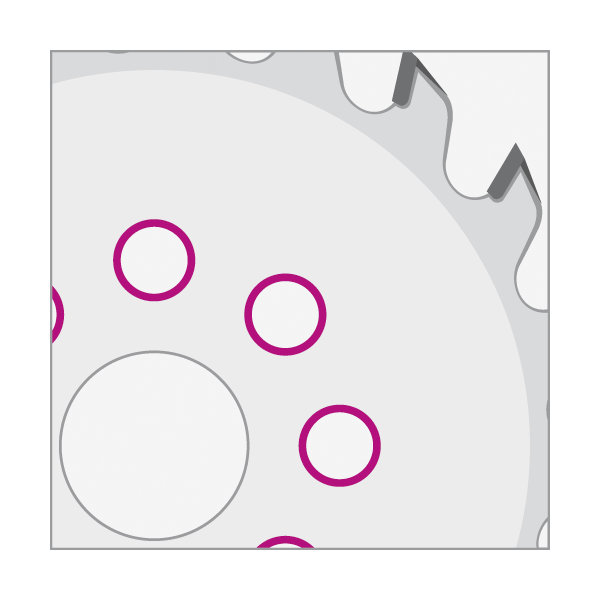

NL = Pin Holes: 2/7/42 + 2/9/46 + 2/10/60

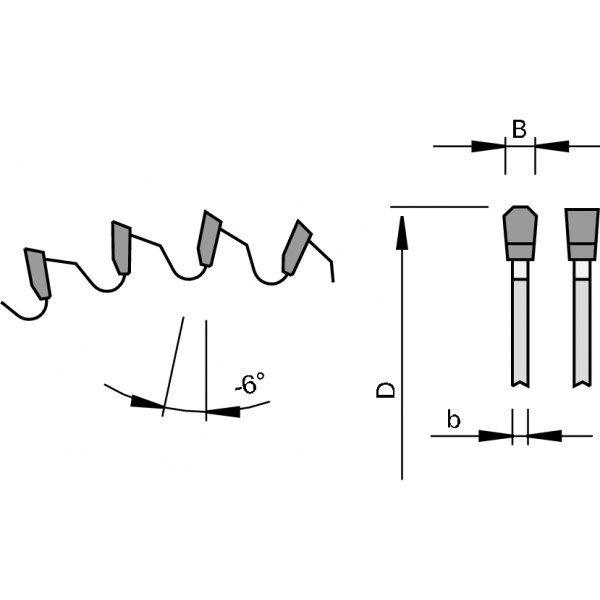

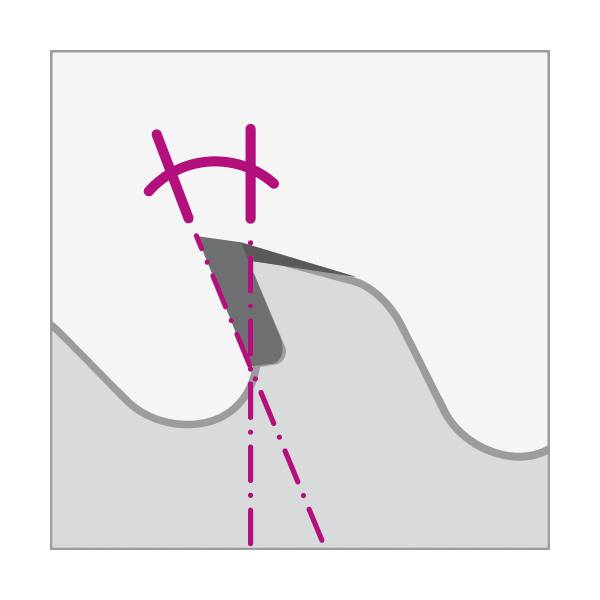

Hook Angle = Hook Angle: -6 [°]
Tooth Geometry = Tooth Configuration:            TR-F
LEUCODUR = Cutting Material: HL Board 10
Machine/Type: Kaltenbach TL 250, ELU TGS 71, 171, 172, Baier, Fezer, Ulmia, Trennjäger

LE1108472189854R

Features:

Ø D = Cutting Circle Diameter: 300 [mm]
B = Cutting Width: 3,2 [mm]
b = Body Thickness: 2.5 [mm]
Ø d = Bore Diameter: 30 [mm]
Z = No. of Teeth: 96
NL = Pin Holes: 2/7/42 + 2/10/60
Hook Angle = Hook Angle: -6 [°]
Tooth Geometry = Tooth Configuration:            TR-F
LEUCODUR = Cutting Material: HL Board 10
Machine/Type: DeWALT, Fezer, Schleicher

LE1108472189860R

Features:

Ø D = Cutting Circle Diameter: 350 [mm]

B = Cutting Width: 3,2 [mm]

b = Body Thickness: 2.5 [mm]

Ø d = Bore Diameter: 30 [mm]

Z = No. of Teeth: 96

NL = Pin Holes: 2/10/60

Hook Angle = Hook Angle: -6 [°]

Tooth Geometry = Tooth Configuration: TR-F

LE1108472189863R

Features:

Ø D = Cutting Circle Diameter: 400 [mm]
B = Cutting Width: 3,8 [mm]
b = Body Thickness: 3.2 [mm]
Ø d = Bore Diameter: 30 [mm]
Z = No. of Teeth: 96
NL = Pin Holes: 2/12/64 + 4/15/80
Hook Angle = Hook Angle: -6 [°]
Tooth Geometry = Tooth Configuration:            TR-F
LEUCODUR = Cutting Material: HL Board 06
Machine/Type: DeWALT, Haffner

LE1108472189866R

Features:

Ø D = Cutting Circle Diameter: 450 [mm]
B = Cutting Width: 3,8 [mm]
b = Body Thickness: 3.2 [mm]
Ø d = Bore Diameter: 30 [mm]
Z = No. of Teeth: 96
NL = Pin Holes: 4/12/64 + 2/12/80
Hook Angle = Hook Angle: -6 [°]
Tooth Geometry = Tooth Configuration:            TR-F
LEUCODUR = Cutting Material: HL Board 06
Machine/Type: DeWALT, Haffner
