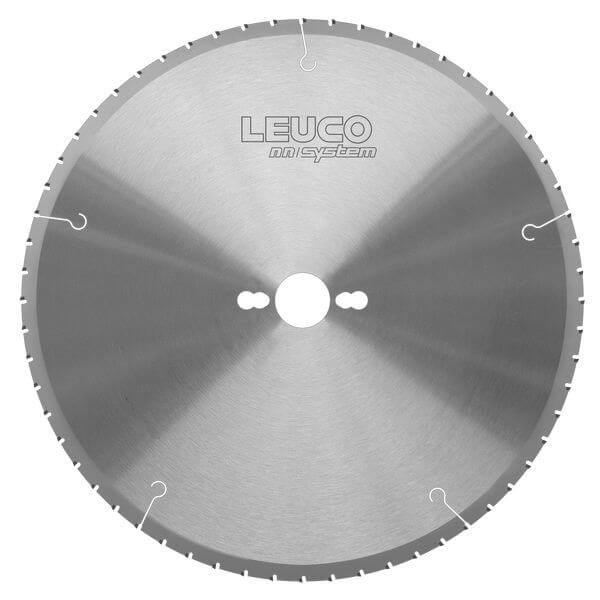

Leuco - Sizing Saw Blades DP "HR" - NN-System DP Flex - NN Sizing Saw 350x2.5x30 Z72
- View all variations as list
| CODE | Cutting Circle Diameter | No. of Teeth | Availability | Price | ||
|---|---|---|---|---|---|---|
|
LE4202289192444
|
In stock
|
AED1,70404 | |||
|
|
LE4202289192446
|
In stock
|
AED2,13925 | |||
|
|
LE4202289192440
|
In stock
|
AED2,13900 |
Brand: Leuco
Design
Resharpenable Up To 2 Times
Small Gullets
Special Cutting-Edge Geometry
Tooth Configuration: Hollow Back Tooth "HR"
Cutting Material: DP
Machine / Application
Sizing Saws and Table Saws.
Vertical Panel Sizing Saws.
Clipping Saws.
For Precise Cutting in All Common Wood-Based Panels Such as Raw and Laminated Particle and MDF .Boards, Plywood Boards, HDF, WPC, Cement and Gypsum Fiber Boards, Mineral Composites, Alucobond.
For Ripping and Cross Cuts in Solid Wood, Glued Laminated Timber, Thermotreated Wood.
Advantages
Hardly perceivable noise level.
Highest productivity and economic efficiency thanks to extremely long edge lives due to DP-tipping.
Reduced cutting pressure thanks to hollow back tooth geometry.
Notes
It is not recommended to use the saw blades for longitudinal cuts in soft wood and material thicknesses of more than 40 mm.
Chip-free cuts can only be guaranteed in combination with a suitable scoring saw blade.
Attention! For these saw blades the thickness of the splitting wedge must range between 2.0 and 2.4 mm.
Included in delivery: splitting wedge must be ordered separately.
Product Variation:
Code: LE4202289192446

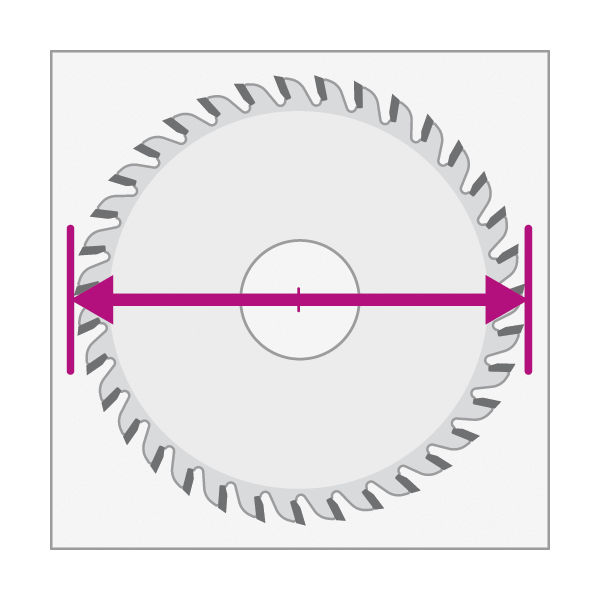

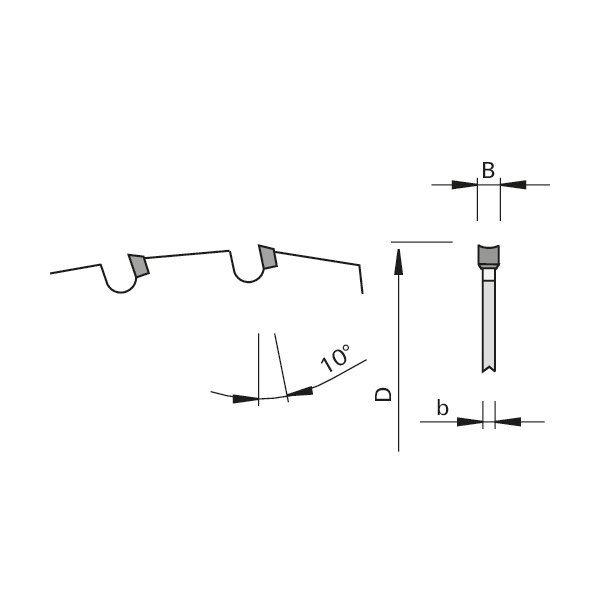

Ø D = Cutting Circle Diameter: 350 [mm]

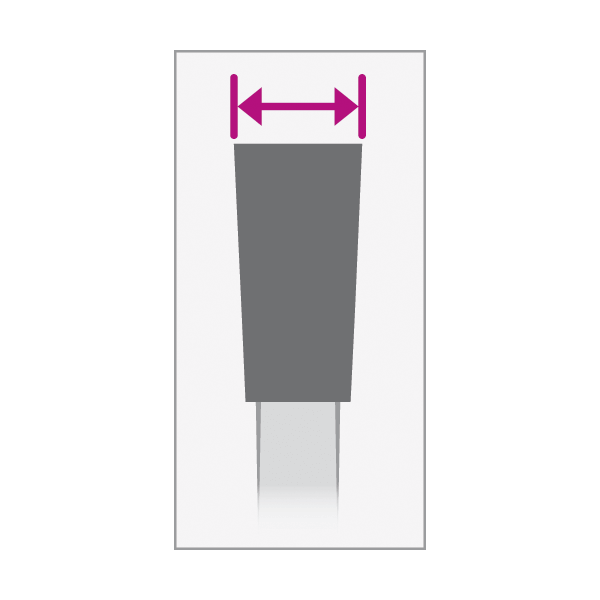

B = Cutting Width: 2,5 [mm]

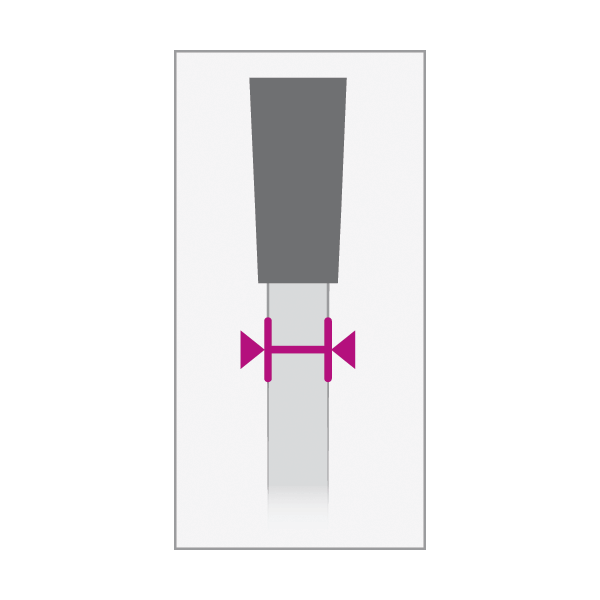

b = Body Thickness: 2 [mm]

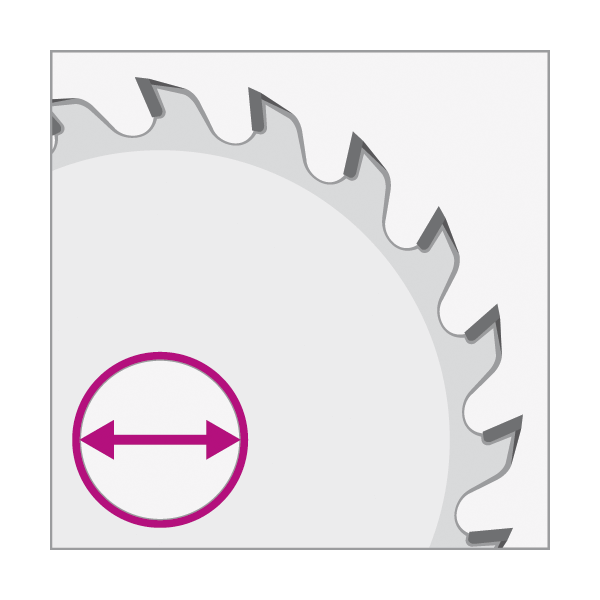

Ø d = Bore Diameter: 30 [mm]

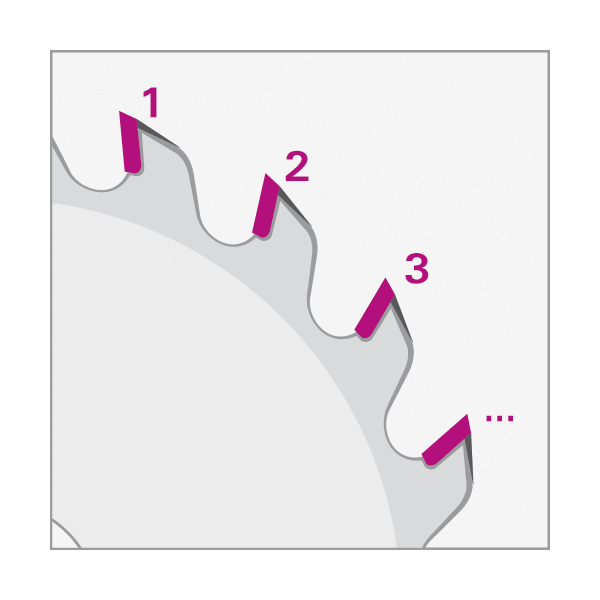

Z = No. of Teeth: 72

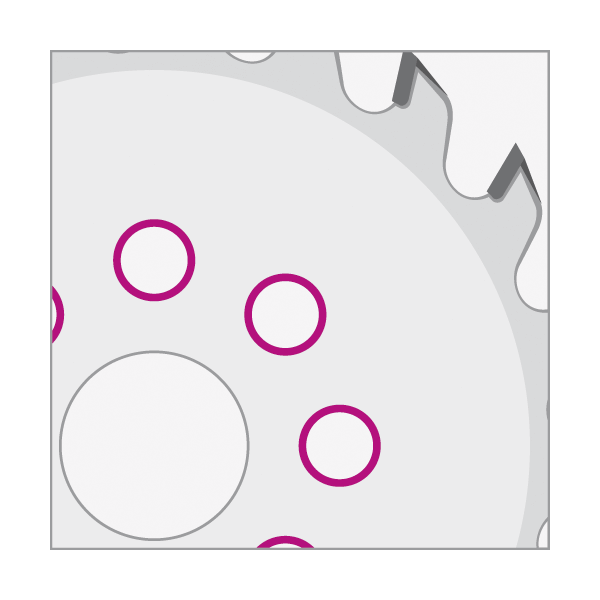

NL = Pin Holes: 2/7/42 + 2/9/46 + 2/10/60

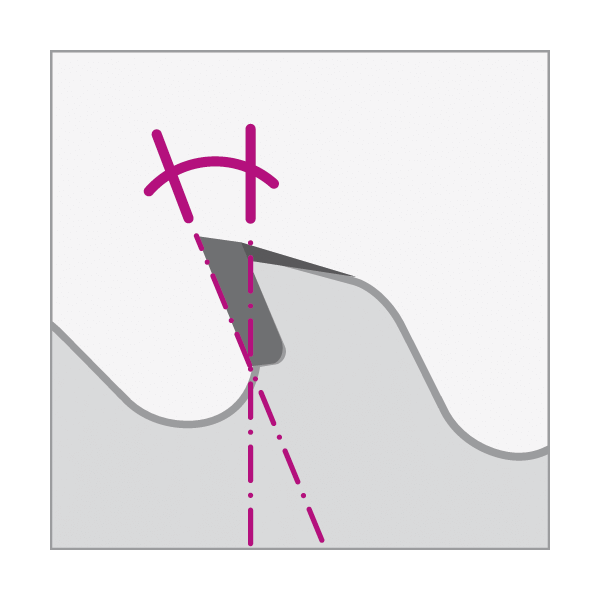

Hook Angle = Hook Angle: 10 [°]
Tooth Geometry = Tooth Configuration: HR
Cutting Quality* = Cutting Quality: ▲▲▲
LE4202289192440
Ø D = Cutting Circle Diameter: 250 [mm]
B = Cutting Width: 2,5 [mm]
b = Body Thickness: 2 [mm]
Ø d = Bore Diameter: 30 [mm]
Z = No. of Teeth: 50
NL = Pin Holes: 2/7/42 + 2/9/46 + 2/10/60
Hook Angle = Hook Angle: 10 [°]
Tooth Geometry = Tooth Configuration: HR
Cutting Quality* = Cutting Quality: ▲▲▲
LE4202289192444
Ø D = Cutting Circle Diameter: 303 [mm]
B = Cutting Width: 2,5 [mm]
b = Body Thickness: 2 [mm]
Ø d = Bore Diameter: 30 [mm]
Z = No. of Teeth: 60
NL = Pin Holes: 2/7/42 + 2/9/46 + 2/10/60
Hook Angle = Hook Angle: 10 [°]
Tooth Geometry = Tooth Configuration: HR
Cutting Quality* = Cutting Quality: ▲▲▲
