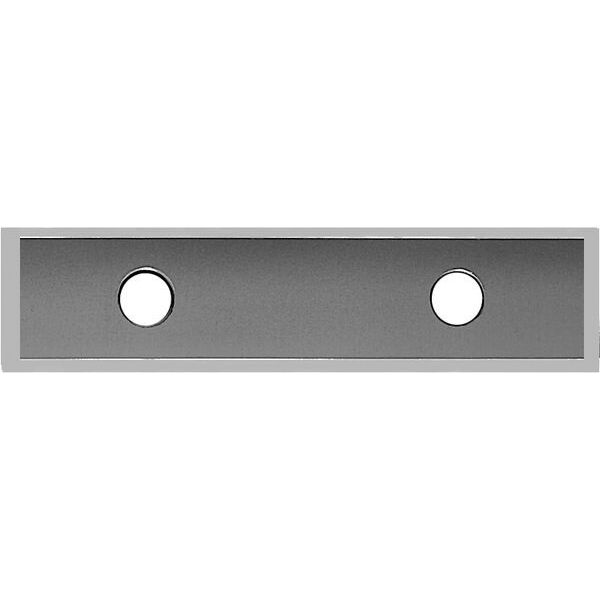

Leuco - Turnover Knives HW with 2 Cutting Edges, End Sharpened - 49.5x12x1.5x4 HLB05
- View all variations as list
| CODE | Width | Bore Distance | Availability | Price | ||
|---|---|---|---|---|---|---|
|
LE6150515180826
|
In stock
|
AED1806 | |||
|
|
LE6150515180825
|
In stock
|
AED1331 |
Brand: Leuco
Design
Cutting Material: HW.
HL Board 02 for Wood-Based Panels and Plastics.
HL Board 03 for Wood-Based Panels and Plastics.
HL Board 05 for Wood-Based Panels, Plastics and Hard Woods .
Machine / Application
For Use in Shank-Type Cutters .
Notes
Packing unit: 10 pieces.
Product Variation:
LE6150515180826

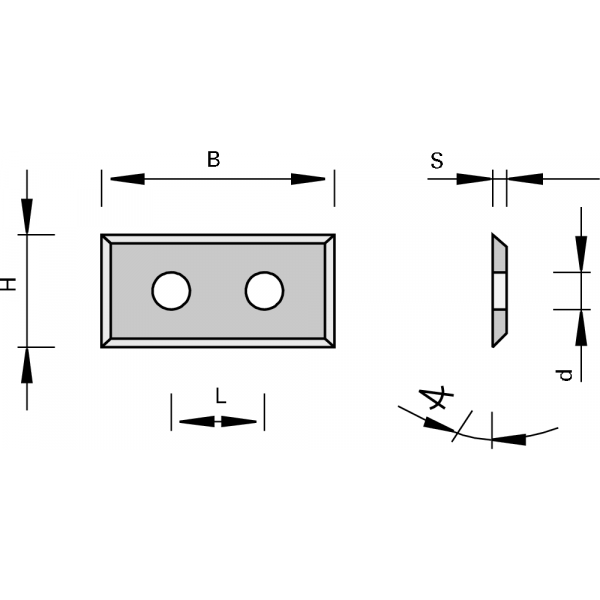

Features: Value:
Dimension: 49,5x12x1,5 [mm]

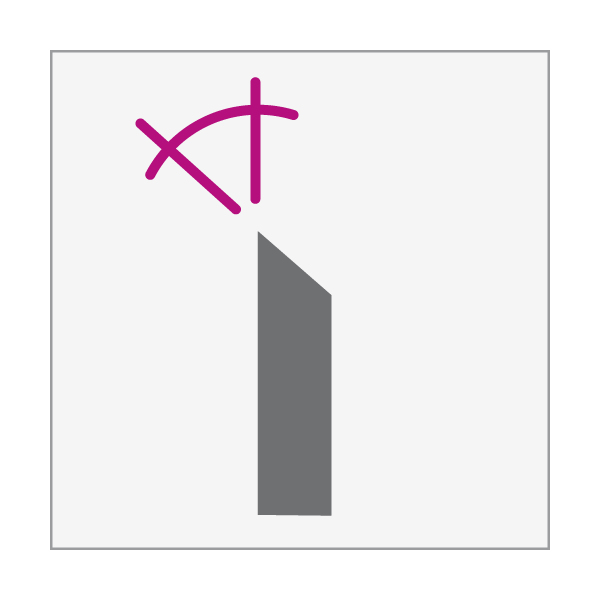

Chamfer∡ = Chamfer Angle: 20 [°]
B = Width: 49,5 [mm]
H = Height: 12 [mm]

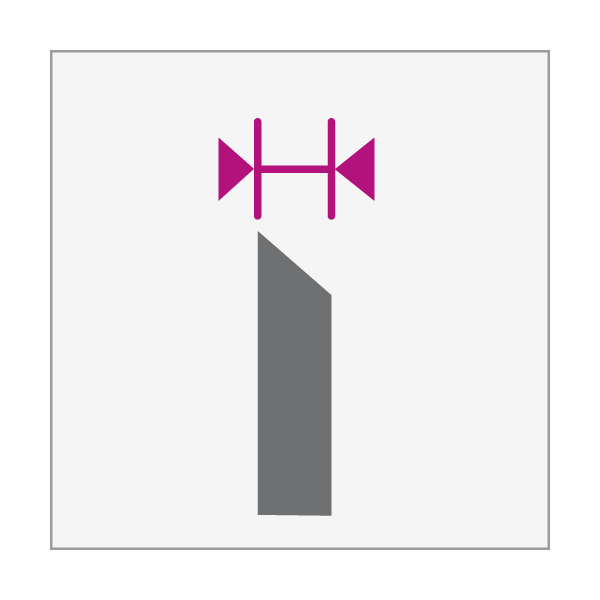

S = Thickness: 1.5 [mm]
Ø d = Bore Diameter: 4,0 [mm]
L = Bore Distance: 26 [mm]
Wedge∡ = Wedge Angle: 55 [°]
LEUCODUR = Cutting Material: HL Board 05
PU = Packing Unit: 10 [pc.]
LE6150515180825
Features: Value:
Dimension: 29,5x12x1,5 [mm]
Chamfer∡ = Chamfer Angle: 20 [°]
B = Width: 29,5 [mm]
H = Height: 12 [mm]
S = Thickness: 1.5 [mm]
Ø d = Bore Diameter: 4,0 [mm]
L = Bore Distance: 14 [mm]
Wedge∡ = Wedge Angle: 55 [°]
LEUCODUR = Cutting Material: HL Board 05
PU = Packing Unit: 10 [pc.]
