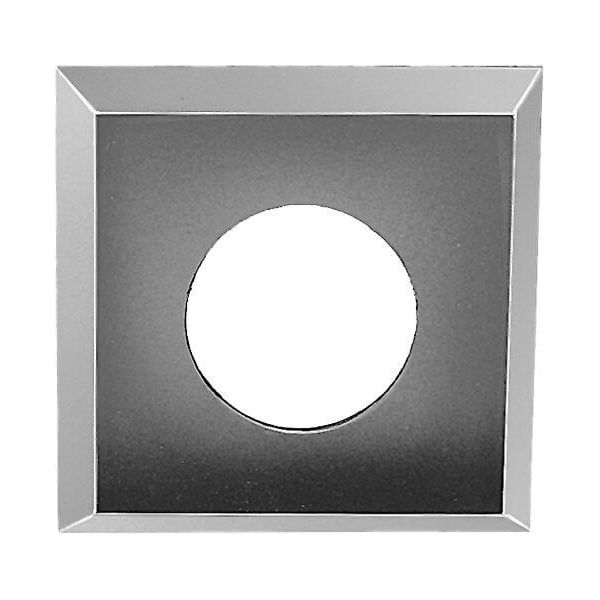

Leuco - Turnover Knives HW with 4 Cutting Edges and Countersink - HLS25

Brand: Leuco

Specification:

Design

Topline (Polished Face and Micro-Ground Clearance Angle).

Advantages

Machines Homag, Fischer Brugg, IMA, Weinig, Lestro, HOLZ-HER.

For the Use as Flat Scraper on Homag Edge Banding Machines FA20 + FA21.

For Use in Edge Jointing Cutterheads.

For Use in Spiral Cutterheads.

For Use in Cutterheads.

Advantages

Long Edge Lives and Optimum Cutting Quality in Solid Woods.

EcoKnife: Turnover Knife with Less Weight, Less Unbalance.

Notes

Ident-No. 167777 for Scoring Device of the HOLZ-HER Vertical Panel Sizing Saw.

Marking for Easier Mounting.

Packing Unit: 10 pieces.

Product Variation:

LE6150517185274

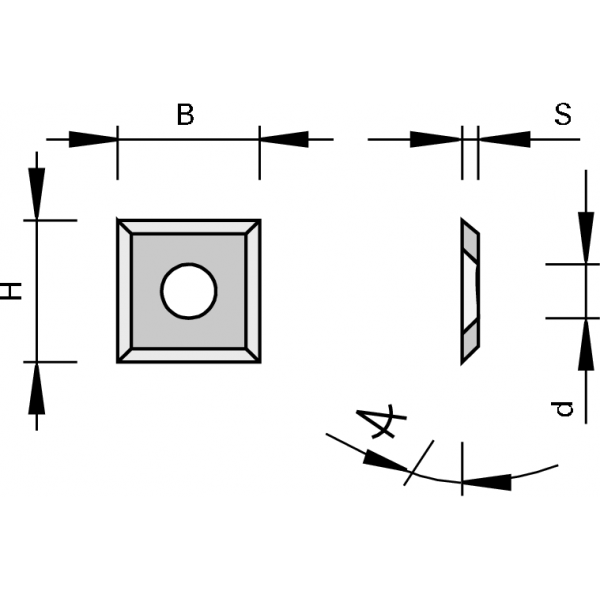

Features:                                             Value:

Dimension: 15x15x2 R=                       150[mm]
R = Radius:                                          150 [mm]

B = Width:                                            15 [mm]

H = Height:                                          15 [mm]

S = Thickness:                                     2.5 [mm]

Ø d = Bore Diameter:                           6,4 [mm]

Wedge∡ = Wedge Angle:                    60 [°]

LEUCODUR = Cutting Material:           HL Solid 20

PU = Packing Unit:                               10[pc.]
Machine/Type:                                     with Rounded Edges (R=150)

LE6150518170248

Features:                                             Value:

Dimension:                                           14,3x14,3x2,5 [mm]

B = Width:                                            14,3 [mm]

H = Height:                                          14.3 [mm]

S = Thickness:                                     2.5 [mm]

Ø d = Bore Diameter:                           6,3 [mm]

Wedge∡ = Wedge Angle:                    55 [°]

LEUCODUR = Cutting Material:           HL Solid 20

PU = Packing Unit:                               10[pc.]
Machine/Type:                                     Homag (FA20 + FA21)
